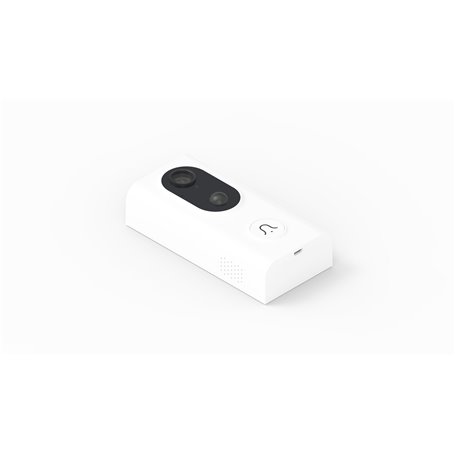

Wifi Wireless Video Doorbell Camera Full HD 1920x1080p

Video Doorphone Camera for Front Door Plug and Play Wifi Full HD ...
€61.75 (VAT incl.) €95.00 -35% €61.75 (VAT excl.)
VAT included
block Product available for orders
 Customer ratings and reviews
Nobody has posted a review yet
in this language

Description

Features :

Built-in Wifi and Built-in Battery
1080P HD Resolution
Cloud Storage (1 month free) and TF Card Storage
Two-way Audio (Noise Reduction)
Built-in IR for night vision
Motion Detection with PIR or Mobile Wakeup
Mobile App Mornitoring
Support Screen Inversion
4 Channel Play Simultaneously
Streaming Media Forwarding Server
Accurate Low Battery Reminder
Support Docking with Alexa and Google Home
Online Delete/save Cloud Video via App
Fast and Accurate Message Pushup
Free OEM for Tuya Version
Works with Dingdong

Specifications :

Product Colour White
Plastic Material (External) Housing PC plastic
Camera Lens PC plastic

Surface Finishing (Plastic & Metal part) Housing glazed
Camera Lens Glossy polishing

Resistance to UV (UVA 340) 3 years
Net Weight 100g
Product Size 125mm*60mm*35mm
Warranty Period 2 Years
General Specificatoin
Battery Built-in Rechargeable Battery (18650), DC5V-1A, 3-4 months
Power supply 3.7V
Power consumption Working: 200mA Standby: 260uA
Operating temperature -20 ~ 50 ℃, Humidity <95%
Operating humidty 80% max
Storage temperature -20 ~ 70 ℃, Humidity <95%
Protection Class Impact test 0.5Nm
System
Solution / OS RTOS
System Security Three level user authority management
Mobile App Requirement Android Android : Android 4.3 or higher
Other Mobile Support Support SamSung, HTC, LG, Sony, Nokia
iOS iOS 9.X - 10.X ( iPhone 5/6S/7 ) or higher
Mobile APP Support Configuration/ Live browsing/ Recall/ Talking/ Audio volume adj/ Video adj./ Recording/ Format SD card
Cloud recording storage Support cloud uploading Yes
Amazon Cloud Yes
Ring tone Fixed
Motion Sensor PIR
Detection range 3m/ 110 degrees
Sensitivity High/ Medium High/ Medium/ Low for selection
Suppory TF Card Max. 32/64GB TF Card
Format TF card Yes
Support FAT Yes
Tamper Detection Yes
Pairing Max units AP / Scan QR code to add device
On line visitor Support up to 1 on line visitors
DDNS(Dynamic Domain Name Server) NO
Video and Sensor
Image Sensor 1080P 1/2.7" CMOS sensor
Sensor support options AWB AGC, IR filter and BLC
Sensor size 1/3
SNR > = 39 dB
Minimum brightness 1 Lux ( Color mode ) No blur
0.3 Lux ( B&W mode ) No blur
Lens/Viewing angle 114°
Lens spec 4mm @ F1.4
Night Vision 6pcs 850nm LEDs, IR Distance: 5 meters
IR-Control IR ON: night vision view enabled, infrared Ray, ICR auto detect.
IR OFF: night vision view disabled, infrared Ray OFF, ICR stay in day view mode.
Compression standard H.264/ motion JPEG ( when RF quality dropped )
Resolution & frame rate Multi stream:1080P/25fps
Bit Rate CBR/VBR, output bit rate range: 128~4096kbps TBD
Image adjustment Brightness, Contrast, Saturation are adjustable.
Audio
MIC input 1 Channel Internal -48dB microphone
Speaker output Internal speaker (8Ω/1W)
Sampling frequency/ 8-16KHz/16bit
Data compression technology ADPCM/32kbps
Echo cancellation Yes
Two-Way Talk Yes
Effective Volume Indication tone 75dB @ 0.5m
Mircrophone Directive Omni-directional
Effective Detection Range 0.5m max.
Network
Protocol TCP/IP, HTTP, DHCP
WiFi 802.11b/g/n
Network security WEP, WPA, WPA2 encryption
Wireless Connection AP hotspot / STA (Station Mode - Client)
RF receiving sensitivity 802.11n: HT20/MCS 7 10% PER @ -70 dBm, typical
802.11g: 54Mbps 10%PER @ -72dBm, typical
802.11b: 11Mbps 10%PER @ -86 dBm, typical
Output Power 802.11n: HT20/MCS0 18 dBm typical
802.11n: HT20/MCS7 16 dBm typical
802.11g: 54Mbps 16 dBm typical
802.11g: 6Mbps 18 dBm typical
802.11b: 11Mbps 18dBm typical
Wired Connection No
Pairing AP
Recording
Recording mode Motion detection recording, scheduled recording/ remote recording
Storage TF Card storage, Cloud storage
Max recording duration Depends on capacity of the storage device
Full duplex recording Recording video, two way audio, date/HH:MM:SS printing
Playback Indication for non-reading recording/
Storage device full management overwrite the most earest recorded video
Live browsing Activate camera by mobile APP
UI/UX interface Via mobile APP

Data sheet

TT-VDB2M - Noir
0.40 kg
0 Item
5452002021784
Data sheet
Weight (Kg)
0,4
